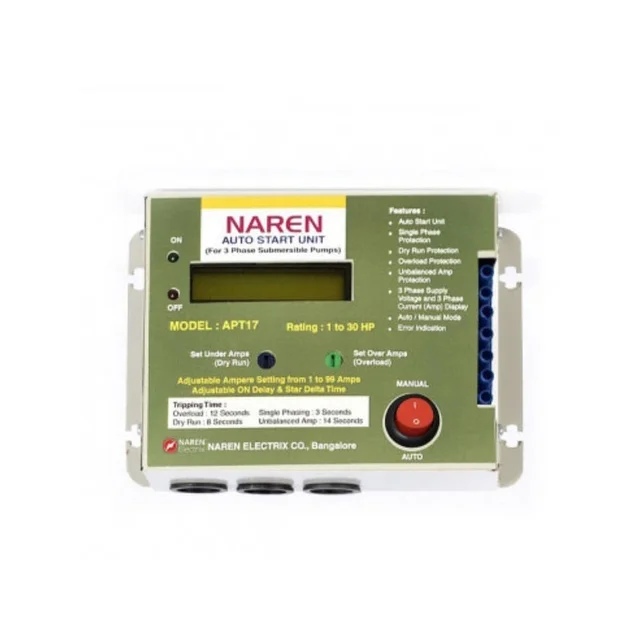

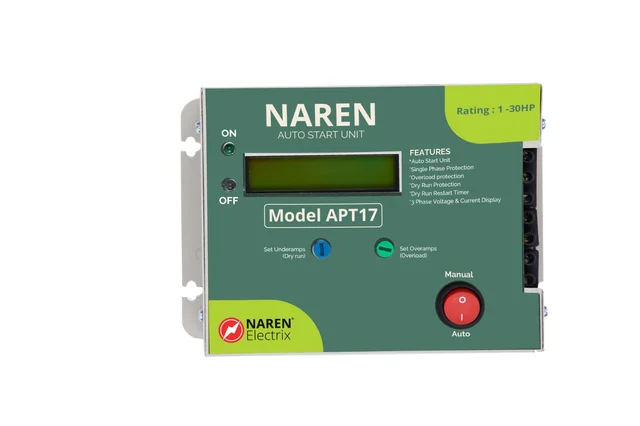

NAREN Electrix l Motor Protection Relays l APT17 - SKU - 47356831

• Brand: NAREN Electrix

• Product Name: APT17 Motor Protection Relay

• Category: Motor Protection Relays

• Model: APT17

• SKU: 47356831

• Motor Compatibility: Designed for compatible three-phase motor and pump installations.

• Motor Rating: 1 to 30 HP, according to the product listing.



  MPR



• Overload Protection: Helps protect the motor against excessive current conditions.

• Dry-Run Protection: Helps detect undercurrent conditions associated with dry running.

• Single-Phasing Protection: Helps protect the motor when a phase of the three-phase supply is lost.

• Automatic Start Function: Supports automatic motor starting when configured correctly.

• Adjustable Power-On Delay: Allows adjustment of the startup delay according to the unit's settings.

• Dry-Run Restart: Includes a restart option for compatible dry-run protection settings.

• Motor Cable Cut Protection: Supports detection of motor cable cut conditions.

• Digital Ammeter: Displays current readings across the three phases.

• Digital Voltmeter: Provides three-phase voltage monitoring.

• LCD Fault Display: Shows error information to help identify motor faults.

• Adjustable Protection Settings: Supports adjustment of overload and dry-run thresholds.

• Built-in Current Transformers: Includes built-in CTs for current monitoring.

• Motor Status Indicator: Includes a motor ON indication.

• Body Material: Metal.

• Applications: Suitable for compatible agricultural pumps, borewell and submersible pumps, and industrial motor systems.

Note: Confirm the operating voltage, current range, protection settings, and supported motor capacity for SKU 47356831 with NAREN Electrix before publishing final technical specifications.
