NAREN Electrix l Motor Protection Relays l DMC-1 - SKU - 47310351

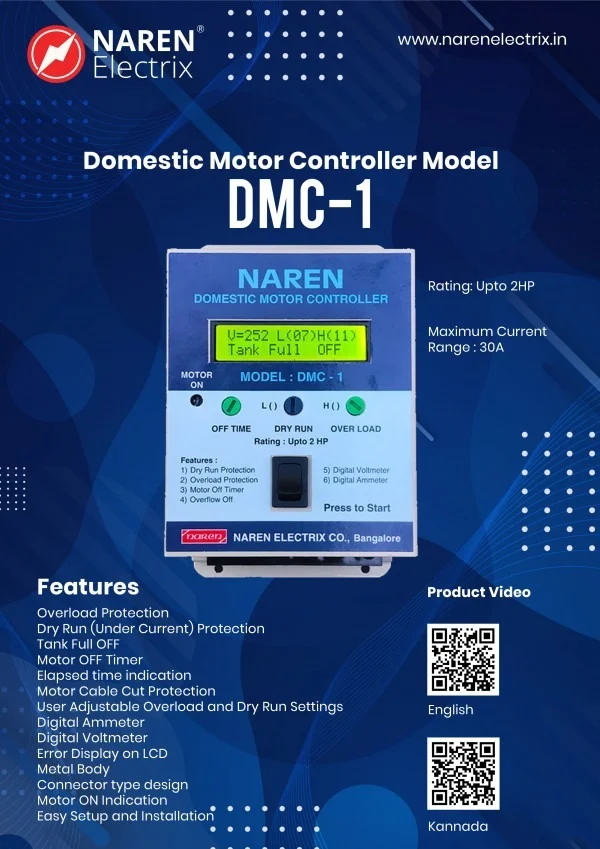

• Brand: NAREN Electrix

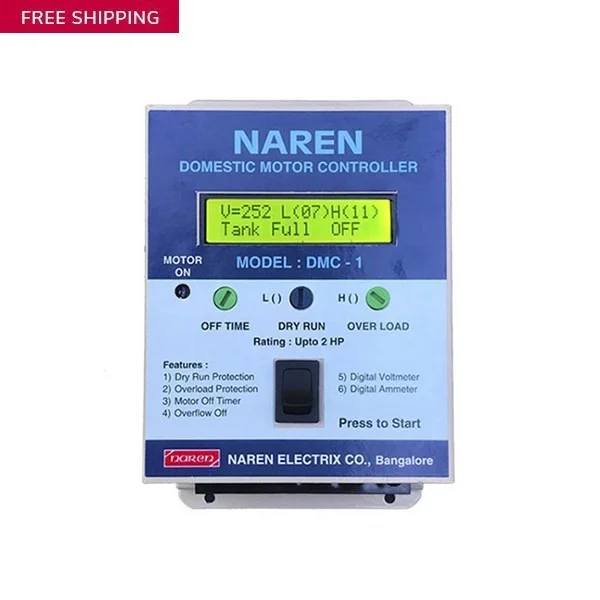

• Product Name: DMC-1 Motor Protection Relay

• Category: Motor Protection Relays

• Model: DMC-1

• SKU: 47310351

• Product Type: Digital Motor Protection System with Built-in Starter

• Pump Compatibility: Designed for single-phase monoblock and openwell submersible pumps.

• Overload Protection: Helps protect the motor against excessive current conditions.

• Dry-Run Protection: Helps protect the motor when the pump operates without sufficient load.

• Tank-Full Shut-Off: Automatically switches off the motor when the overhead tank is full, when connected to compatible sensors.

• Motor OFF Timer: Includes an adjustable timer for controlling motor operating duration.

• Digital Current Display: Displays motor current for convenient monitoring.

• Digital Voltage Display: Provides voltage monitoring functionality.

• LCD Fault Indication: Displays fault information to help identify the reason for motor shutdown.

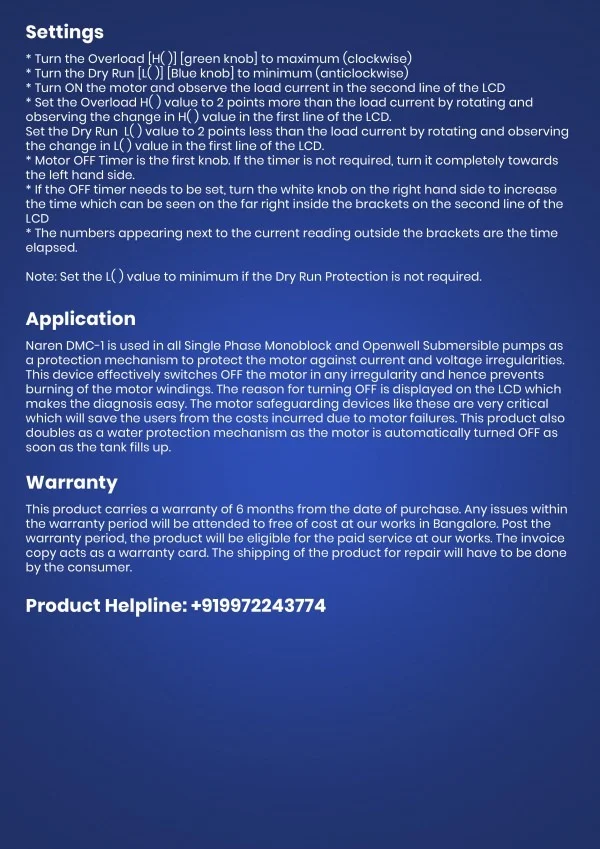

• Adjustable Settings: Allows users to adjust overload and dry-run protection thresholds.

• Motor Cable Cut Protection: Includes a motor cable cut detection feature.

• Elapsed Time Indication: Displays elapsed motor operating time.

• Maximum Current Range: Up to 30 A, according to the manufacturer's product listing.

• Applications: Suitable for compatible agricultural irrigation, residential water supply, and other water pumping applications.

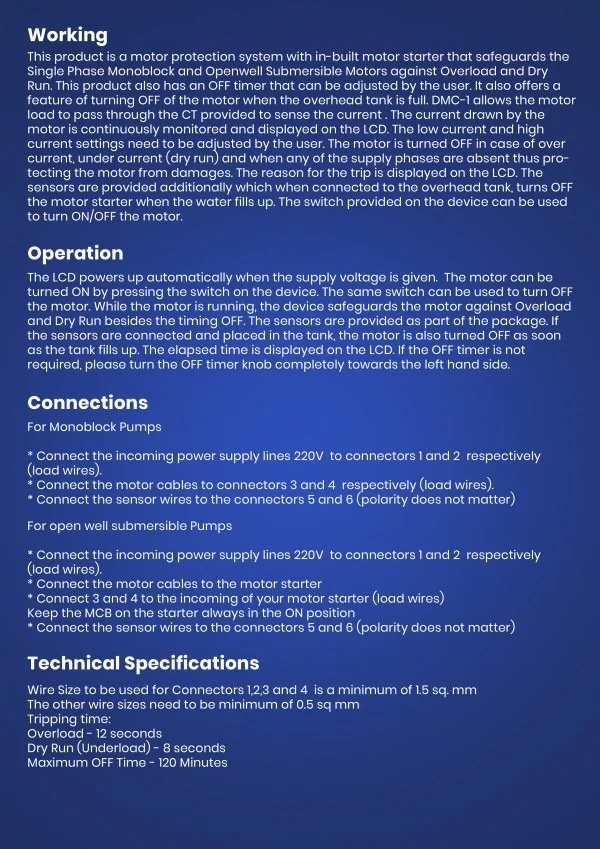

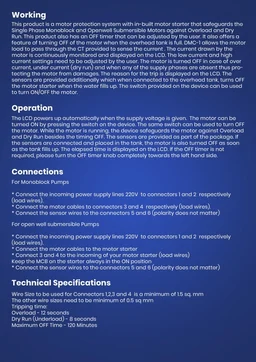

4. Technical Specifications

• Supply Voltage: 220 V AC, as specified for the listed configuration.

• Maximum Current: 30 A.

• Overload Tripping Time: Approximately 12 seconds.

• Dry-Run Tripping Time: Approximately 8 seconds.

• Maximum OFF Timer Setting: Up to 120 minutes.

• Display: Digital LCD.

• Construction: Metal body.

• Installation: Must be installed according to the manufacturer's wiring instructions.
