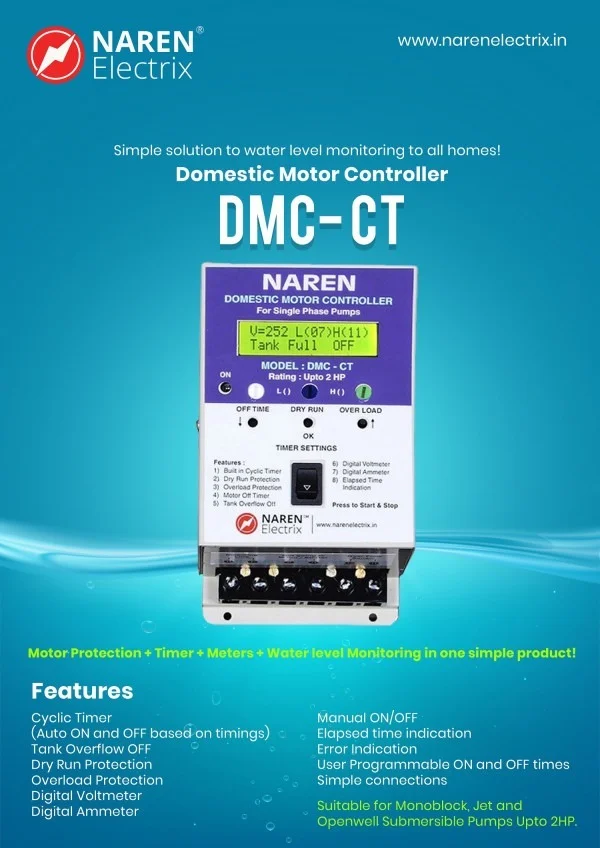

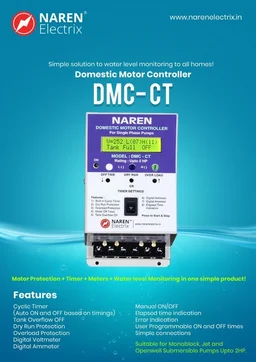

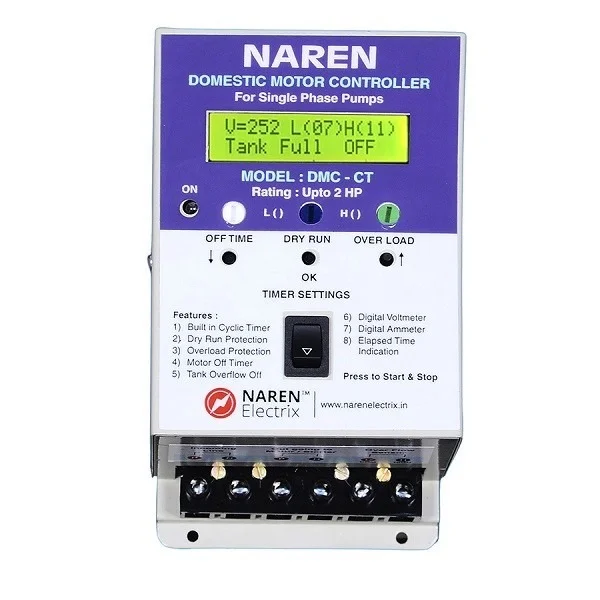

NAREN Electrix l Motor Protection Relays l DMC-CT - SKU - 47310355

• Brand: NAREN Electrix

• Product Name: DMC-CT Motor Protection Relay

• Category: Motor Protection Relays

• Model: DMC-CT

• SKU: 47310355

• Product Type: Digital Motor Protection System with Built-in Starter

• Pump Compatibility: Designed for compatible single-phase monoblock and openwell submersible pumps.

• Overload Protection: Helps protect the motor against excessive current conditions.

• Dry-Run Protection: Helps protect the motor against undercurrent conditions associated with dry running.

• Cyclic Timer: Supports automatic motor ON/OFF cycles according to user-configured timer settings.

• Manual/Cyclic Modes: Supports manual operation and cyclic timer operation.

• Tank-Full Shut-Off: Switches off the motor when the overhead tank is full, provided compatible sensors are connected.

• Motor OFF Timer: Includes an adjustable timer to control motor operating duration.

• Digital Current Monitoring: Displays the motor's current consumption.

• Digital Voltage Monitoring: Provides voltage display functionality.

• LCD Fault Display: Shows fault information to help identify the reason for motor shutdown.

• Elapsed Time Indication: Displays elapsed motor operating time.

• Motor Cable Cut Protection: Includes a motor cable cut detection feature.

• Adjustable Protection Settings: Allows users to adjust overload and dry-run thresholds.

• Applications: Suitable for compatible agricultural irrigation, residential water supply, and other water pumping systems.



  Dukaan App



4. Technical Specifications

• Supply Voltage: 220V AC

• Maximum Current: 30A

• Overload Tripping Time: Approximately 12 seconds

• Dry-Run Tripping Time: Approximately 8 seconds

• Maximum Motor OFF Timer: 120 minutes

• Maximum Cyclic ON Time: 99 hours

• Maximum Cyclic OFF Time: 99 hours

• Display: Digital LCD

• Body Material: Metal

• Installation: Follow the manufacturer's wiring and installation instructions.





Note: Verify that these technical specifications apply to SKU 47310355 before publishing the product listing.
